ca18detottpart3d

Jul 23, 2008

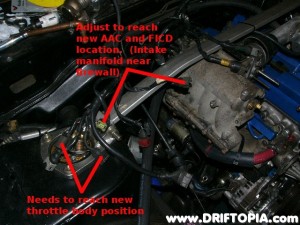

Locate the indicated plugs and then carefully strip the wrap on the wiring harness.

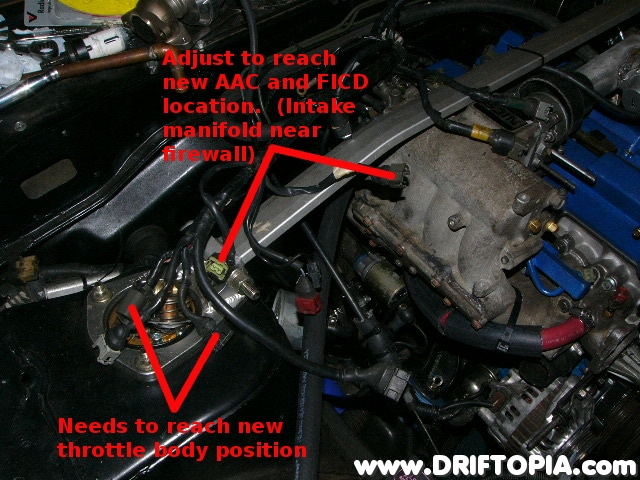

This diagram highlights the plugs that need to be moved. They are F14, F19, F23 and F24 on page 868 of the FSM.
Once stripped, pull the desired plugs away from the bundle and secure them to the back of the harness with electrical tape. You are effectively making a T so these plugs can route elsewhere.
