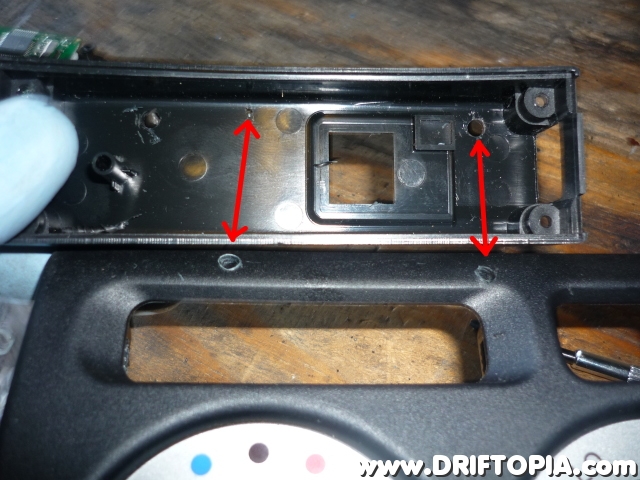

At this point, starting with a small drill bit, create mounting holes in the ScanGaugeII piece and the dash panel. (NOTE: These holes were created through both pieces at the same time to ensure that the holes remain aligned. The image above was taken afterwards to show how the holes should correspond.)

Line the removed piece to the area where the clock was removed on the panel. Make sure that you have the ScanGaugeII back piece aligned in the upright position.
This image shows the general idea behind mounting the gauge. Small bolts will be placed through the back of the ScanGaugeII panel and then through the dash panel.
