ca18detottpart3a

Jul 23, 2008

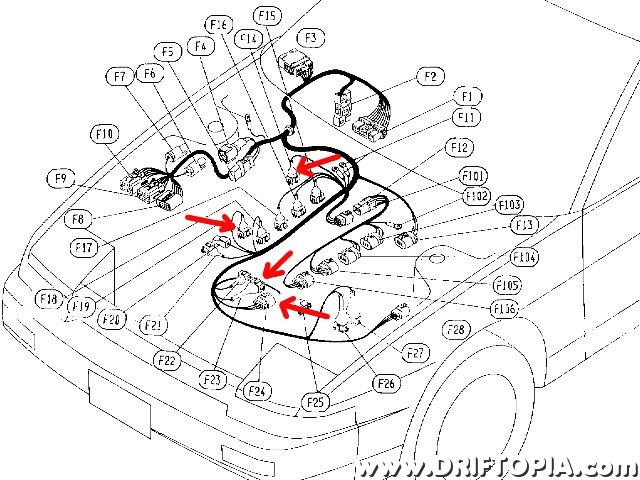

This diagram highlights the plugs that need to be moved. They are F14, F19, F23 and F24 on page 868 of the FSM.

Attach the air line from the charge pipe to the AAC, FICD assembly using a 3/8" hose. (This image also shows zip ties holding an already modified harness to the fuel rail.)
Locate the indicated plugs and then carefully strip the wrap on the wiring harness.
